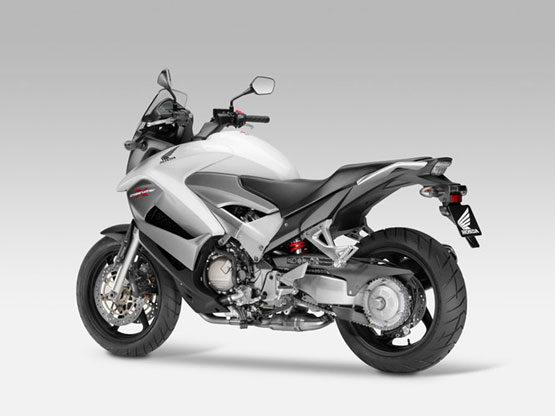

2011 Honda Crossrunner - United States of America Specifications
USA MSRP - $TBA USD
ENGINE
Type Liquid-cooled 4-stroke 16-valve DOHC 90° V-4
Displacement 782cm3
Bore x Stroke 72 x 48mm
Compression Ratio 11.6 : 1
Max. Power Output 74.9kW/10,000min-1 (95/1/EC)
Max. Torque 72.8Nm/9,500min-1 (95/1/EC)
Idling Speed 1,200min-1
Oil Capacity 3.8 litres
FUEL SYSTEM
Carburation PGM-FI electronic fuel injection
Throttle Bore 36mm
Aircleaner Oil-permeated, cartridge-type paper filter
Fuel Tank Capacity 21.5 litres
ELECTRICAL SYSTEM
Ignition System Computer-controlled digital transistorised with electronic advance
Ignition Timing 8° BTDC (idle) ~ 50° BTDC (1,200min-1)
Sparkplug Type IMR9D-9H (NGK); VNH27Z (DENSO)
Starter Electric
Battery Capacity 12V/11AH (YTZ-12S)
ACG Output 386W
Headlights 12V; 55W x 1 (low) / 55W x 1 (high)
DRIVETRAIN
Clutch Wet, multi-plate with coil springs
Clutch Operation Hydraulic
Transmission Type Constant mesh 6-speed
Primary Reduction 1.934 (64/33)
Gear Ratios
1 2.846 (37/13)
2 2.062 (33/16)
3 1.578 (30/19)
4 1.291 (31/24)
5 1.111 (30/27)
6 0.965 (28/29)
Final Reduction 2.687 (43/16)
Final Drive O-ring sealed chain
FRAME
Type Diamond; aluminium twin-spar; pivotless
CHASSIS
Dimensions (L x W x H) 2,130 x 799 x 1,243mm
Wheelbase 1,464mm
Caster Angle 25° 45'
Trail 96mm
Turning Radius 2.8m
Seat Height 816mm
Ground Clearance 140mm
Kerb Weight 240.4kg (F: 115.2kg; R: 125.2kg)
SUSPENSION
Type Front: 43mm cartridge-type telescopic fork with stepless preload adjustment, 165mm axle travel
Rear: Pro-Link with gas-charged HMAS damper, 7-step preload and stepless rebound damping adjustment, 145mm axle travel
WHEELS
Type Front: 6-spoke cast aluminium
Rear: 5-spoke cast aluminium
Rim Size Front: 17M/C x MT3.50
Rear: 17M/C x MT5.50
Tyre Size Front: 120/70 R17
Rear: 180/55 R17
Tyre Pressure Front: 225kPa
Rear: 250kPa
BRAKES
Type Front: 296mm dual floating hydraulic disc with 3-piston calipers, C-ABC and sintered metal pads
Rear: 256mm hydraulic disc with 2-piston caliper, C-ABS and sintered metal pads
All specifications are provisional and subject to change without notice.
